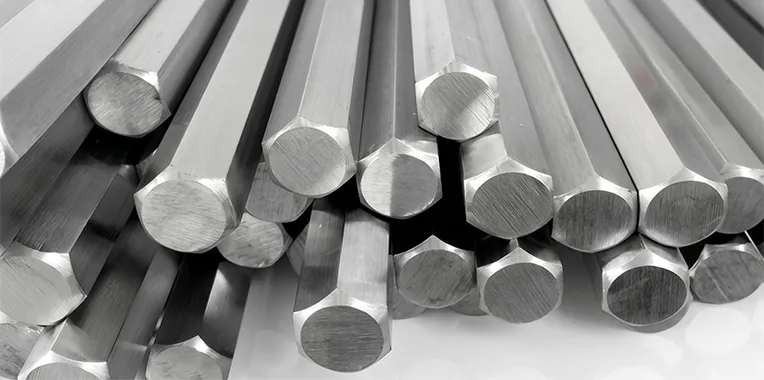

Ganpat Metal manufactures and supplies Hastelloy Hex Bars in C276 (UNS N10276), C22 (UNS N06022), and B2 (UNS N10665) conforming to ASTM B574, ASTM B335 and ASME SB574. Hastelloy nickel-molybdenum-chromium superalloys represent the premier tier of corrosion-resistant metallic materials for extreme chemical process environments.
Hastelloy C276 provides outstanding resistance to wet chlorine gas, hypochlorite solutions, sulfuric acid, and chloride-induced pitting. Hastelloy C22 provides even superior resistance to oxidizing acid media (nitric, chromic) due to elevated 22% chromium. Hastelloy B2 is uniquely resistant to pure reducing hydrochloric acid across all concentrations and boiling temperatures.
Our Hastelloy hex bars are supplied in solution annealed and pickled condition with verified chemistry, 100% PMI verification, and excellent machinability for high-integrity chemical valves, pump shafts, agitator bolts, and autoclave fasteners.
GM handles enquiries for Hastelloy Hex Bars where buyers need to match hexagonal bar dimensions, across flats (AF) tolerances, and material grade to project drawings or purchase specifications. The supplied inventory covers precision cold drawn and hot rolled sizes beginning from 3 mm up to 100 mm across flats, with custom cut-to-length and surface finish options.
Grade selection should be based on the mechanical tensile properties, hardness, corrosion resistance, and chemical composition required by the project application. Buyers should also confirm the applicable standard specification (ASTM / ASME / EN), delivery condition (cold drawn, annealed, or quenched & tempered), inspection requirements, and documentation before finalizing an order.
| Parameter | Specification |
|---|---|
| Standard Specifications | ASTM B574 / ASME SB574 (C276, C22), ASTM B335 (B2) |
| Available Grades | Hastelloy C276 (UNS N10276), Hastelloy C22 (UNS N06022), Hastelloy B2 (UNS N10665) |
| Size Range (AF) | 4 mm to 80 mm Across Flats |
| Length | 100 mm to 6000 mm (Custom cut lengths available) |
| Heat Treatment | Solution Heat Treated (1120–1175°C) & Rapid Water Quenched |
| Surface Finish | Bright Cold Drawn, Turned & Polished, Pickled |
| Dimensional Tolerance | ASTM B574 / EN 10278 (h9 / h11) |
| Corrosion Testing | ASTM G28 Method A/B Intergranular Corrosion Test |
| Testing & Certification | 100% PMI, Tensile, Hardness, Ultrasonic Test, NABL Certified |
| Documentation | EN 10204 Type 3.1 / 3.2 Mill Test Certificate |
Standard chemical composition limits conform to international metallurgical standards.
| Grade | Ni | Mo | Cr | Fe | W | Other |
|---|---|---|---|---|---|---|
| Hastelloy C276 | 57.0 min / Bal | 15.0 – 17.0 | 14.5 – 16.5 | 4.0 – 7.0 | 3.0 – 4.5 | Co 2.5 max, Mn 1.0 max |
| Hastelloy C22 | 56.0 min / Bal | 12.5 – 14.5 | 20.0 – 22.5 | 2.0 – 6.0 | 2.5 – 3.5 | V 0.35 max, Co 2.5 max |
| Hastelloy B2 | 66.0 min / Bal | 26.0 – 30.0 | 1.0 max | 2.0 max | — | Co 1.0 max, Mn 1.0 max |
Minimum mechanical property requirements in designated standard delivery condition:
| Grade | Tensile Strength (min) | Yield Strength 0.2% (min) | Elongation (min) | Hardness (max) |
|---|---|---|---|---|
| Hastelloy C276 | 690 MPa (100 ksi) | 283 MPa (41 ksi) | 40% | 100 HRB / 240 HB |
| Hastelloy C22 | 690 MPa (100 ksi) | 310 MPa (45 ksi) | 45% | 95 HRB / 220 HB |
| Hastelloy B2 | 760 MPa (110 ksi) | 350 MPa (51 ksi) | 40% | 100 HRB / 240 HB |
| Standard / Country | Designation |
|---|---|
| Hastelloy C276 | UNS N10276 • Werkstoff 2.4819 • EN NiMo16Cr15W • Alloy C276 |
| Hastelloy C22 | UNS N06022 • Werkstoff 2.4602 • EN NiCr21Mo14W • Alloy C22 |
| Hastelloy B2 | UNS N10665 • Werkstoff 2.4617 • EN NiMo28 • Alloy B2 |
| Form / Type | Size Range | Length / Dimensions | Condition / Standard |
|---|---|---|---|
| Cold Drawn Hastelloy Hex | 4 mm to 45 mm AF | 1000 mm to 4000 mm | Cold Drawn, Solution Annealed & Pickled |
| Hot Finished Hastelloy Hex | 15 mm to 80 mm AF | Up to 5000 mm | Solution Annealed, Peeled / Descaled |
| Custom Cut Pieces | All Sizes | Cut-to-size | Precision cut on automatic band saws |
Custom dimensions, special cuts, and tailored surface conditions available on request.
Enter hex bar dimensions (across flats & length) and click Calculate to get approximate weight.
Ganpat Metal manufactures and supplies certified Hastelloy Hex Bars for industrial buyers across India. All materials are sourced from premium quality mills, fully tested for chemistry, mechanical properties, and dimensional tolerances, and supplied with complete traceable Mill Test Certificates.
Whether you require standard stock dimensions or customized sizes, Ganpat Metal maintains deep inventories in Mumbai and provides rapid dispatch, custom cut-to-length services, and third-party inspection support.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade | Hastelloy C276 (UNS N10276) / C22 (UNS N06022) / B2 (UNS N10665) |
| Standard | ASTM B574 / ASME SB574 / ASTM B335 |
| Size Across Flats (AF) | Required AF in mm or inches |
| Length | Standard 3m or exact cut lengths in mm |
| Condition | Solution Heat Treated & Water Quenched |
| Quantity | Required quantity in kg or pieces |
| Corrosion Test | ASTM G28 Method A/B Intergranular Corrosion Rate test if required |
| Documentation | EN 10204 Type 3.1 / 3.2 MTC with full chemical & mechanical traceability |
