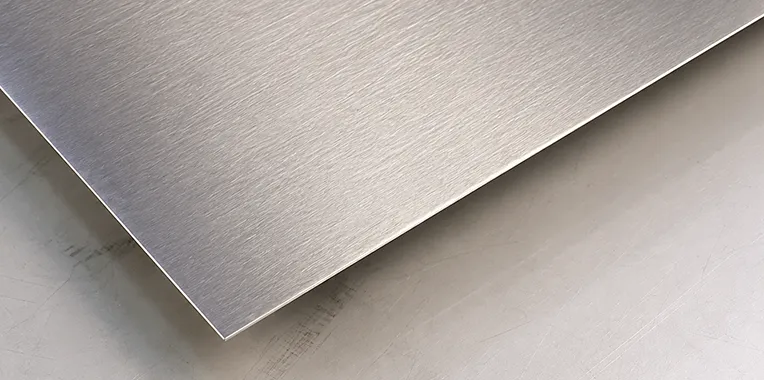

Ganpat Metal manufactures and supplies Titanium Grade 12 Sheets — a near-alpha titanium alloy containing molybdenum (0.2–0.4%) and nickel (0.6–0.9%). Grade 12 offers higher strength than commercially pure grades while maintaining excellent weldability and superior corrosion resistance, particularly in reducing environments. Conforms to ASTM B265 Grade 12 / ASME SB265.
Titanium Grade 12 (UNS R53400) is selected for applications requiring better corrosion resistance than Grade 2 in reducing acids, combined with good weldability and moderate strength. It is widely used in chemical processing, desalination and marine applications.
Ganpat Metal supplies Titanium Grade 12 Sheets for industrial procurement requirements where material grade, dimensions and inspection documentation need to match the purchase specification.
Buyers can submit their requirements for sheet thickness, width, length and quantity to confirm availability. For project-based orders, the required standard, testing criteria and material documentation should be agreed before order confirmation.
| Parameter | Specification |
|---|---|
| Material | Titanium Alloy Grade 12 |
| Standard | ASTM B265 / ASME SB265 |
| UNS No. | R53400 |
| Alloy Type | Near-Alpha Titanium Alloy (Ti-Mo-Ni) |
| Thickness (Sheet) | 0.5 mm to 6 mm |
| Thickness (Plate) | 6 mm to 100 mm |
| Width | Up to 2500 mm |
| Length | Up to 6000 mm |
| Form | Sheet, Plate, Coil, Strip |
| Finish | Annealed, Pickled, Polished, Mill Finish |
| Heat Treatment | Annealed |
| Documentation | EN 10204 3.1 / 3.2 Mill Test Certificate |
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance |
| Molybdenum (Mo) | 0.2 – 0.4 |
| Nickel (Ni) | 0.6 – 0.9 |
| Iron (Fe) | 0.30 max |
| Oxygen (O) | 0.25 max |
| Carbon (C) | 0.08 max |
| Nitrogen (N) | 0.03 max |
| Hydrogen (H) | 0.015 max |
| Property | Value |
|---|---|
| Tensile Strength (min) | 483 MPa (70 ksi) |
| Yield Strength 0.2% (min) | 345 MPa (50 ksi) |
| Elongation (min) | 18% |
| Density | 4.50 g/cm³ |
| Modulus of Elasticity | 103 GPa |
| Hardness (Brinell) | 200 HB max |
| Melting Point | 1668°C |
| Standard | Designation |
|---|---|
| ASTM | B265 Grade 12 |
| ASME | SB265 Grade 12 |
| UNS | R53400 |
| AMS | AMS 4900 |
| Common Name | Ti-0.3Mo-0.8Ni |
| DIN / EN | 3.7105 |
| JIS | JIS H4600 Grade 15 |
| Form | Thickness | Width | Length |
|---|---|---|---|
| Sheet | 0.5 mm – 6 mm | Up to 1500 mm | Up to 3000 mm |
| Plate | 6 mm – 100 mm | Up to 2500 mm | Up to 6000 mm |
| Coil / Strip | 0.5 mm – 3 mm | Up to 1000 mm | As required |
Enter Titanium Grade 12 Sheet dimensions to get approximate weight.
Ganpat Metal manufactures and supplies Titanium Grade 12 Sheets for industrial buyers across India. Orders can be prepared according to the required thickness, width, length, finish, quantity and inspection requirements.
For buyers sourcing other titanium grades, Ganpat Metal also supplies Grade 1, 2, 3, 4, 5 (Ti-6Al-4V), 7, 9 (Ti-3Al-2.5V) and 23 (Ti-6Al-4V ELI) sheets and plates.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade | Titanium Grade 12 / ASTM B265 Gr.12 / UNS R53400 |
| Form | Sheet / Plate / Coil / Strip |
| Thickness | Required thickness in mm |
| Width | Required width in mm |
| Length | Required length in mm or cut-to-size |
| Finish | Annealed / Pickled / Polished / Mill Finish |
| Quantity | Required quantity in kg or pieces |
| Testing | IBR / TPI / NABL / UT / Other |
| Documentation | EN 10204 3.1 / 3.2 MTC or other |
