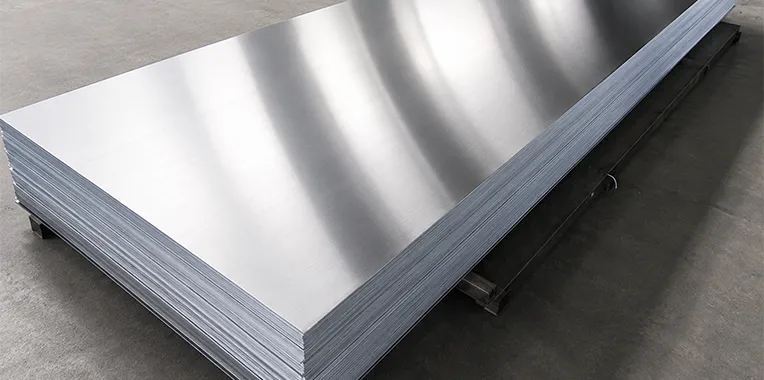

Ganpat Metal manufactures and supplies Titanium Grade 7 Sheets — essentially Grade 2 with a small palladium addition (0.12–0.25%) that dramatically improves corrosion resistance in reducing and mildly oxidizing environments. These sheets conform to ASTM B265 Grade 7 / ASME SB265.
Titanium Grade 7 (UNS R52400) is the most corrosion-resistant of all titanium alloys. The palladium addition provides exceptional resistance to hydrochloric acid, sulphuric acid and other reducing environments where standard CP titanium grades would be inadequate. It retains the same mechanical properties as Grade 2.
| Parameter | Specification |
|---|---|
| Material | Titanium Alloy Grade 7 (Ti-Pd) |
| Standard | ASTM B265 / ASME SB265 |
| UNS No. | R52400 |
| Thickness (Sheet) | 0.5 mm to 6 mm |
| Thickness (Plate) | 6 mm to 100 mm |
| Width | Up to 2500 mm |
| Length | Up to 6000 mm (custom lengths available) |
| Form | Sheet, Plate, Coil, Strip |
| Finish | Annealed, Pickled, Polished, Mill Finish |
| Manufacturing | Hot Rolled, Cold Rolled |
| Heat Treatment | Annealed |
| Additional Testing | IBR, Third-Party Inspection, NABL Lab Testing |
| Documentation | EN 10204 3.1 / 3.2 Mill Test Certificate |
Grade 7 is essentially Grade 2 with a palladium addition that provides superior corrosion resistance in reducing environments.
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance |
| Palladium (Pd) | 0.12 – 0.25 |
| Iron (Fe) | 0.30 max |
| Oxygen (O) | 0.25 max |
| Carbon (C) | 0.08 max |
| Nitrogen (N) | 0.03 max |
| Hydrogen (H) | 0.015 max |
| Other Elements (each) | 0.10 max |
Grade 7 has the same mechanical properties as Grade 2 — the palladium addition only improves corrosion resistance.
| Property | Value |
|---|---|
| Tensile Strength (min) | 345 MPa (50 ksi) |
| Yield Strength 0.2% (min) | 275 MPa (40 ksi) |
| Elongation (min) | 20% |
| Reduction of Area (min) | 30% |
| Density | 4.50 g/cm³ |
| Modulus of Elasticity | 103 GPa |
| Hardness (Brinell) | 145 HB max |
| Melting Point | 1668°C |
| Standard | Designation |
|---|---|
| ASTM | B265 Grade 7 |
| ASME | SB265 Grade 7 |
| UNS | R52400 |
| AMS | AMS 4959 |
| ISO | ISO 5832-2 Grade 7 |
| DIN / EN | 3.7235 |
| JIS | JIS H4600 Grade 11 |
| BS | TA7 |
| Form | Thickness | Width | Length |
|---|---|---|---|
| Sheet | 0.5 mm – 6 mm | Up to 1500 mm | Up to 3000 mm |
| Plate | 6 mm – 100 mm | Up to 2500 mm | Up to 6000 mm |
| Coil / Strip | 0.1 mm – 3 mm | Up to 1000 mm | As required |
Custom sizes, cut-to-length and special dimensions available on request.
Enter Titanium Grade 7 Sheet dimensions and click Calculate to get approximate weight.
Ganpat Metal manufactures and supplies Titanium Grade 7 Sheets for industrial buyers across India. Orders can be prepared according to the required thickness, width, length, finish, quantity and inspection requirements.
For buyers sourcing other titanium grades, Ganpat Metal also supplies Grade 1, Grade 2, Grade 3, Grade 4, Grade 5 (Ti-6Al-4V), Grade 9, Grade 12 and Grade 23 (Ti-6Al-4V ELI) sheets and plates.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade | Titanium Grade 7 / ASTM B265 Gr.7 / UNS R52400 |
| Form | Sheet / Plate / Coil / Strip |
| Thickness | Required thickness in mm |
| Width | Required width in mm |
| Length | Required length in mm or cut-to-size |
| Finish | Annealed / Pickled / Polished / Mill Finish |
| Quantity | Required quantity in kg or pieces |
| Testing | IBR / TPI / NABL / UT / Corrosion Test / Other |
| Documentation | EN 10204 3.1 / 3.2 MTC or other |
