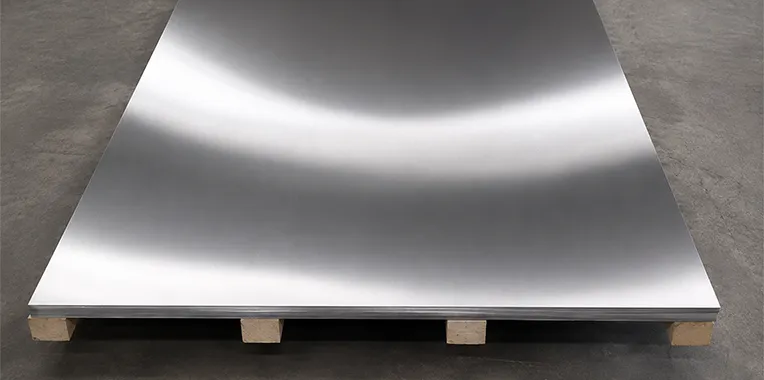

Ganpat Metal manufactures and supplies Titanium Grade 9 (Ti-3Al-2.5V) Sheets — often called "half-6-4", this alloy offers intermediate strength between CP grades and Grade 5, with excellent cold formability and weldability. Conforms to ASTM B265 Grade 9 / ASME SB265.
Titanium Grade 9 (UNS R56320) is an alpha-beta alloy containing 3% aluminium and 2.5% vanadium. It is widely used in aerospace hydraulic tubing, bicycle frames and sporting equipment where a balance of strength, formability and light weight is required.
Ganpat Metal supplies Titanium Grade 9 Sheets for industrial procurement requirements where material grade, dimensions and inspection documentation need to match the purchase specification.
Buyers can submit their requirements for sheet thickness, width, length and quantity to confirm availability. For project-based orders, the required standard, testing criteria and material documentation should be agreed before order confirmation.
| Parameter | Specification |
|---|---|
| Material | Titanium Alloy Grade 9 (Ti-3Al-2.5V) |
| Standard | ASTM B265 / ASME SB265 |
| UNS No. | R56320 |
| Alloy Type | Alpha-Beta Titanium Alloy |
| Thickness (Sheet) | 0.5 mm to 6 mm |
| Thickness (Plate) | 6 mm to 100 mm |
| Width | Up to 2500 mm |
| Length | Up to 6000 mm |
| Form | Sheet, Plate, Coil, Strip |
| Finish | Annealed, Pickled, Polished, Mill Finish |
| Heat Treatment | Annealed |
| Documentation | EN 10204 3.1 / 3.2 Mill Test Certificate |
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance |
| Aluminium (Al) | 2.5 – 3.5 |
| Vanadium (V) | 2.0 – 3.0 |
| Iron (Fe) | 0.25 max |
| Oxygen (O) | 0.15 max |
| Carbon (C) | 0.08 max |
| Nitrogen (N) | 0.03 max |
| Hydrogen (H) | 0.015 max |
| Property | Value |
|---|---|
| Tensile Strength (min) | 620 MPa (90 ksi) |
| Yield Strength 0.2% (min) | 483 MPa (70 ksi) |
| Elongation (min) | 15% |
| Density | 4.46 g/cm³ |
| Modulus of Elasticity | 107 GPa |
| Hardness (Brinell) | 265 HB max |
| Melting Point | 1600 – 1660°C |
| Standard | Designation |
|---|---|
| ASTM | B265 Grade 9 |
| ASME | SB265 Grade 9 |
| UNS | R56320 |
| AMS | AMS 4943 |
| Common Name | Ti-3Al-2.5V / Half-6-4 |
| DIN / EN | 3.7195 |
| JIS | JIS H4600 Grade 50 |
| Form | Thickness | Width | Length |
|---|---|---|---|
| Sheet | 0.5 mm – 6 mm | Up to 1500 mm | Up to 3000 mm |
| Plate | 6 mm – 100 mm | Up to 2500 mm | Up to 6000 mm |
| Coil / Strip | 0.5 mm – 3 mm | Up to 1000 mm | As required |
Enter Titanium Grade 9 Sheet dimensions to get approximate weight.
Ganpat Metal manufactures and supplies Titanium Grade 9 (Ti-3Al-2.5V) Sheets for industrial buyers across India. Orders can be prepared according to the required thickness, width, length, finish, quantity and inspection requirements.
For buyers sourcing other titanium grades, Ganpat Metal also supplies Grade 1, 2, 3, 4, 5 (Ti-6Al-4V), 7, 12 and 23 (Ti-6Al-4V ELI) sheets and plates.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade | Titanium Grade 9 / Ti-3Al-2.5V / ASTM B265 Gr.9 / UNS R56320 |
| Form | Sheet / Plate / Coil / Strip |
| Thickness | Required thickness in mm |
| Width | Required width in mm |
| Length | Required length in mm or cut-to-size |
| Finish | Annealed / Pickled / Polished / Mill Finish |
| Quantity | Required quantity in kg or pieces |
| Testing | IBR / TPI / NABL / UT / Other |
| Documentation | EN 10204 3.1 / 3.2 MTC or other |
