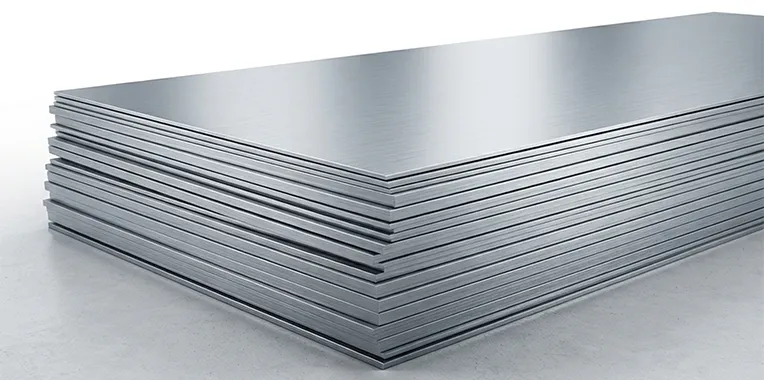

Ganpat Metal manufactures and supplies Titanium Grade 23 (Ti-6Al-4V ELI) Sheets — the Extra Low Interstitial (ELI) version of Grade 5 (Ti-6Al-4V). Grade 23 has tighter controls on oxygen, nitrogen, carbon and iron content, resulting in superior fracture toughness, ductility and fatigue resistance compared to Grade 5. Conforms to ASTM B265 Grade 23 / ASME SB265.
Titanium Grade 23 (UNS R56407) is the preferred medical-grade titanium alloy for surgical implants, prosthetics and biomedical devices. It is also used in cryogenic applications and aerospace structures where superior fracture toughness is critical.
Ganpat Metal supplies Titanium Grade 23 Sheets for industrial and medical procurement requirements where material grade, dimensions and inspection documentation need to match the purchase specification.
Buyers can submit their requirements for sheet thickness, width, length and quantity to confirm availability. For project-based orders, the required standard, testing criteria and material documentation should be agreed before order confirmation.
| Parameter | Specification |
|---|---|
| Material | Titanium Alloy Grade 23 (Ti-6Al-4V ELI) |
| Standard | ASTM B265 / ASME SB265 |
| UNS No. | R56407 |
| Alloy Type | Alpha-Beta Titanium Alloy (ELI) |
| Thickness (Sheet) | 0.5 mm to 6 mm |
| Thickness (Plate) | 6 mm to 150 mm |
| Width | Up to 2500 mm |
| Length | Up to 6000 mm |
| Form | Sheet, Plate, Coil, Strip |
| Finish | Annealed, Pickled, Polished, Mill Finish |
| Heat Treatment | Annealed, Solution Treated & Aged (STA) |
| Documentation | EN 10204 3.1 / 3.2 Mill Test Certificate |
Grade 23 has tighter interstitial limits than Grade 5, particularly for oxygen, nitrogen and iron, which improves fracture toughness and ductility.
| Element | Grade 23 (ELI) | Grade 5 (Standard) |
|---|---|---|
| Titanium (Ti) | Balance | Balance |
| Aluminium (Al) | 5.50 – 6.50 | 5.50 – 6.75 |
| Vanadium (V) | 3.50 – 4.50 | 3.50 – 4.50 |
| Iron (Fe) max | 0.25% | 0.40% |
| Oxygen (O) max | 0.13% | 0.20% |
| Carbon (C) max | 0.08% | 0.08% |
| Nitrogen (N) max | 0.05% | 0.05% |
| Hydrogen (H) max | 0.012% | 0.015% |
| Property | Annealed | STA Condition |
|---|---|---|
| Tensile Strength (min) | 828 MPa (120 ksi) | 1000 MPa (145 ksi) |
| Yield Strength 0.2% (min) | 759 MPa (110 ksi) | 900 MPa (130 ksi) |
| Elongation (min) | 10% | 8% |
| Density | 4.43 g/cm³ | |
| Modulus of Elasticity | 114 GPa | |
| Melting Point | 1604 – 1660°C | |
| Standard | Designation |
|---|---|
| ASTM | B265 Grade 23 |
| ASME | SB265 Grade 23 |
| UNS | R56407 |
| AMS | AMS 4930 |
| Common Name | Ti-6Al-4V ELI / Grade 23 |
| ISO | ISO 5832-3 (ELI) |
| DIN / EN | 3.7165 ELI |
| ASTM F136 | Surgical implant standard |
| Form | Thickness | Width | Length |
|---|---|---|---|
| Sheet | 0.5 mm – 6 mm | Up to 1500 mm | Up to 3000 mm |
| Plate | 6 mm – 150 mm | Up to 2500 mm | Up to 6000 mm |
| Coil / Strip | 0.5 mm – 3 mm | Up to 1000 mm | As required |
Enter Titanium Grade 23 Sheet dimensions to get approximate weight.
Ganpat Metal manufactures and supplies Titanium Grade 23 (Ti-6Al-4V ELI) Sheets for industrial and medical buyers across India. Orders can be prepared according to the required thickness, width, length, heat treatment condition, finish, quantity and inspection requirements.
For buyers sourcing other titanium grades, Ganpat Metal also supplies Grade 1, 2, 3, 4, 5 (Ti-6Al-4V), 7, 9 (Ti-3Al-2.5V) and 12 sheets and plates.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade | Titanium Grade 23 / Ti-6Al-4V ELI / ASTM B265 Gr.23 / UNS R56407 |
| Form | Sheet / Plate / Coil / Strip |
| Thickness | Required thickness in mm |
| Width | Required width in mm |
| Length | Required length in mm or cut-to-size |
| Heat Treatment | Annealed / STA |
| Finish | Annealed / Pickled / Polished / Mill Finish |
| Quantity | Required quantity in kg or pieces |
| Testing | IBR / TPI / NABL / UT / Fracture Toughness / Other |
| Documentation | EN 10204 3.1 / 3.2 MTC or other |
