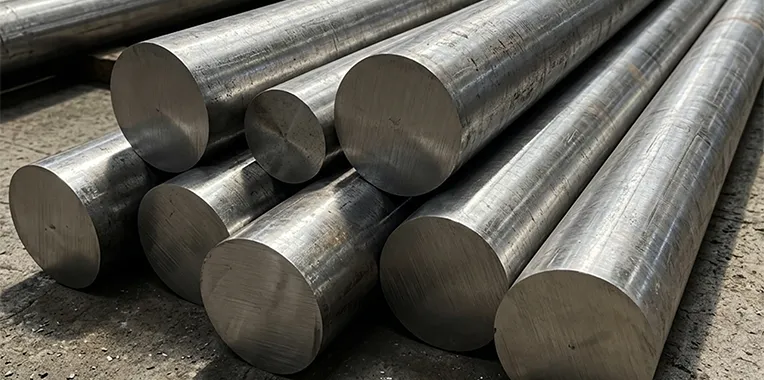

Ganpat Metal manufactures and supplies High-Temperature Inconel Round Bars in Grades 600, 625, 718 and X-750 conforming to ASTM B166, ASTM B446, ASTM B637 and AMS aerospace specifications. Inconel nickel-chromium-based superalloys are designed to operate under extreme environmental conditions of mechanical stress, cyclic thermal fatigue, aggressive oxidation and corrosive chemical attack.
Inconel 600 serves in furnace parts and chemical equipment up to 1175°C. Inconel 625 provides high fatigue strength and pitting resistance in seawater without post-machining heat treatment. Inconel 718 and X-750 are precipitation-hardenable superalloys that achieve tensile strengths up to 1240 MPa (180 ksi) with exceptional creep-rupture performance for turbine rotors, high-pressure subsea valves, and rocket engines.
Our Inconel round bars are available from 4 mm to 350 mm in diameter in annealed, solution treated, or precipitation age-hardened conditions with 100% ultrasonic testing and complete EN 10204 3.1 certification.
GM handles enquiries for Inconel Round Bars where buyers need to match round bar diameters, machining tolerances (h9, h11, k12), and material grade to engineering drawings or purchase specifications. The supplied range covers precision cold drawn, peeled, centerless ground, and forged round bars beginning from 3 mm up to 500 mm diameter, with cut-to-size billet and pre-machined options.
Grade selection should be based on the required mechanical properties, core hardness, chemical composition, and operating temperature conditions of the application. Buyers should also confirm the applicable standard specification (ASTM / ASME / DIN / EN), delivery condition (annealed, solution treated, or quenched & tempered), NDT testing (ultrasonic / PMI), and mill documentation before finalizing an order.
| Parameter | Specification |
|---|---|
| Standard Specifications | ASTM B166 (600), ASTM B446 (625), ASTM B637 (718, X750), AMS 5662/5663 |
| Available Grades | Inconel 600 (UNS N06600), 625 (UNS N06625), 718 (UNS N07718), X-750 (UNS N07750) |
| Diameter Range | 4 mm to 350 mm diameter |
| Length | 100 mm to 6000 mm / Custom cut lengths |
| Heat Treatment | Annealed (Gr. 1/2), Solution Treated, Precipitation Age Hardened |
| Surface Finish | Bright Cold Drawn, Centerless Ground, Turned & Polished, Hot Rolled |
| Dimensional Tolerance | ASTM B446 / ASTM B166 / AMS specifications h9, h10, h11 |
| Testing & Certification | High-Temp Tensile, Stress Rupture, Hardness, PMI, UT per AMS 2630 |
| Documentation | EN 10204 Type 3.1 / 3.2 Mill Test Certificate |
Standard chemical composition limits conform to international metallurgical standards.
| Grade | Ni | Cr | Mo | Nb+Ta | Fe | Other |
|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | — | — | 6.0 – 10.0 | C 0.15 max, Mn 1.0 max |
| Inconel 625 | 58.0 min | 20.0 – 23.0 | 8.0 – 10.0 | 3.15 – 4.15 | 5.0 max | Ti 0.40 max, Al 0.40 max |
| Inconel 718 | 50.0 – 55.0 | 17.0 – 21.0 | 2.80 – 3.30 | 4.75 – 5.50 | Balance | Ti 0.65-1.15, Al 0.20-0.80 |
| Inconel X-750 | 70.0 min | 14.0 – 17.0 | — | 0.70 – 1.20 | 5.0 – 9.0 | Ti 2.25-2.75, Al 0.40-1.00 |
Minimum mechanical property requirements in designated standard delivery condition:
| Grade | Tensile Strength (min) | Yield Strength 0.2% (min) | Elongation (min) | Hardness (Condition) |
|---|---|---|---|---|
| Inconel 600 | 550 MPa (80 ksi) | 240 MPa (35 ksi) | 30% | 180 HB max (Annealed) |
| Inconel 625 | 827 MPa (120 ksi) | 414 MPa (60 ksi) | 30% | 25 HRC max (Grade 1 Annealed) |
| Inconel 718 | 1240 MPa (180 ksi) | 1034 MPa (150 ksi) | 12% | 36 HRC min (Age Hardened) |
| Inconel X-750 | 1100 MPa (160 ksi) | 725 MPa (105 ksi) | 15% | 32 HRC / 300 HB (Age Hardened) |
| Standard / Country | Designation |
|---|---|
| Inconel 600 | UNS N06600 • Werkstoff 2.4816 • EN NiCr15Fe • Alloy 600 |
| Inconel 625 | UNS N06625 • Werkstoff 2.4856 • EN NiCr22Mo9Nb • Alloy 625 |
| Inconel 718 | UNS N07718 • Werkstoff 2.4668 • EN NiCr19Fe19Nb5Mo3 • AMS 5662/5663 |
| Inconel X-750 | UNS N07750 • Werkstoff 2.4669 • EN NiCr15Fe7TiAl • AMS 5667/5670 |
| Form / Type | Size Range | Length / Dimensions | Condition / Standard |
|---|---|---|---|
| Cold Drawn Inconel Bar | 4 mm to 50 mm Dia | 1000 mm to 4000 mm | Cold Drawn, Bright Ground, h9/h11 |
| Hot Finished & Turned | 20 mm to 160 mm Dia | Up to 5000 mm | Solution Annealed, Peeled & Polished |
| Forged Superalloy Bar | 100 mm to 350 mm Dia | Up to 4000 mm | Forged, Age Hardened / Solution Treated |
| Cut Billets & Disks | All Sizes | Cut-to-length | Precision bandsaw cut with 100% UT |
Custom dimensions, special cuts, and tailored surface conditions available on request.
Enter round bar diameter & length and click Calculate to get approximate weight.
Ganpat Metal manufactures and supplies certified Inconel Round Bars for industrial buyers across India. All materials are sourced from premium quality mills, fully tested for chemistry, mechanical properties, and dimensional tolerances, and supplied with complete traceable Mill Test Certificates.
Whether you require standard stock dimensions or customized sizes, Ganpat Metal maintains deep inventories in Mumbai and provides rapid dispatch, custom cut-to-length services, and third-party inspection support.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade | Inconel 600 / Inconel 625 / Inconel 718 / Inconel X-750 |
| Standard | ASTM B166 / ASTM B446 / ASTM B637 / AMS 5662 / AMS 5663 |
| Diameter (mm) | Required diameter in mm with tolerance requirement |
| Length | Standard 3m or exact cut lengths in mm |
| Heat Treatment Condition | Annealed (Grade 1/2) / Solution Treated / Precipitation Aged |
| Quantity | Required quantity in kg, meters, or pieces |
| Testing | PMI, UT to AMS 2630 Class A/B, Hardness, Elevated Temp Tensile |
| Documentation | EN 10204 Type 3.1 / 3.2 MTC with full chemistry & melt route trace |
