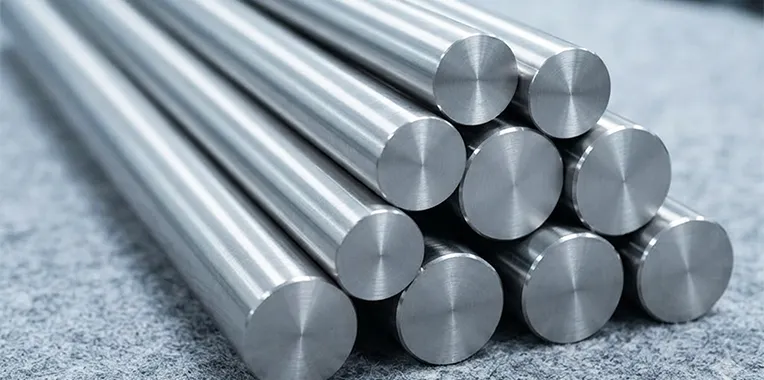

Ganpat Metal manufactures and supplies certified Stainless Steel 304L Round Bars conforming to ASTM A276 / ASME SA276, ASTM A479, ASTM A484. Grade 304L is the extra-low-carbon variant of 304. The lower carbon content prevents harmful carbide precipitation during welding, providing superior resistance to intergranular corrosion without requiring post-weld annealing.
Our SS 304L round bars are produced under rigorous quality management, supplied in cold drawn, peeled, centerless ground, or forged rough-turned condition. Each bar is carefully heat treated to achieve optimum grain structure, superior straightness (≤ 1 mm/m), and uniform mechanical strength suitable for high-speed machining, valve components, pump shafts, and structural engineering fasteners.
We maintain extensive inventories from 3 mm to 500 mm diameter in standard mill lengths and custom cut-to-length billets with complete EN 10204 Type 3.1 Mill Test Certificates and third-party inspection support.
GM handles enquiries for SS 304L Round Bars where buyers need to match round bar diameters, machining tolerances (h9, h11, k12), and material grade to engineering drawings or purchase specifications. The supplied range covers precision cold drawn, peeled, centerless ground, and forged round bars beginning from 3 mm up to 500 mm diameter, with cut-to-size billet and pre-machined options.
Grade selection should be based on the required mechanical properties, core hardness, chemical composition, and operating temperature conditions of the application. Buyers should also confirm the applicable standard specification (ASTM / ASME / DIN / EN), delivery condition (annealed, solution treated, or quenched & tempered), NDT testing (ultrasonic / PMI), and mill documentation before finalizing an order.
| Parameter | Specification |
|---|---|
| Standard Specifications | ASTM A276 / ASME SA276, ASTM A479, ASTM A484 |
| Grade Designation | SS 304L (UNS S30403 / W.Nr. 1.4306 / 1.4307) |
| Diameter Range | 3 mm to 500 mm (1/8" to 20" diameter) |
| Length | 100 mm to 6500 mm / Custom cut-to-length |
| Manufacturing Process | Hot Rolled, Cold Drawn, Forged, Peeled, Centerless Ground |
| Condition & Temper | Solution Annealed, Normalized & Tempered / Quenched & Tempered |
| Surface Finish | Bright Drawn (h9/h11), Ground (h8), Smooth Turned, Black |
| Dimensional Tolerance | ASTM A484 / EN 10278 (h8, h9, h11, k12) |
| Testing & Certification | 100% PMI, Tensile & Yield, Hardness, Ultrasonic Testing (UT) |
| Documentation | EN 10204 3.1 / 3.2 Mill Test Certificate, NABL Accredited Lab Report |
Standard chemical composition limits conform to international metallurgical standards.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 0.75 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 8.00 – 12.00 |
| Nitrogen (N) | 0.10 max |
| Iron (Fe) | Balance |
Minimum mechanical property requirements in designated standard delivery condition:
| Property | Value (Annealed Condition) |
|---|---|
| Tensile Strength (min) | 485 MPa (70 ksi) |
| Yield Strength 0.2% (min) | 170 MPa (25 ksi) |
| Elongation in 2" (min) | 40% |
| Reduction of Area (min) | 50% |
| Hardness (Brinell max) | 201 HB |
| Hardness (Rockwell B max) | 92 HRB |
| Density | 7.93 g/cm³ |
| Standard / Country | Designation |
|---|---|
| ASTM / ASME | A276 / SA276 Type 304L, A403 WP304L |
| UNS | S30403 |
| Werkstoff Nr. | 1.4306 / 1.4307 |
| EN / DIN | X2CrNi18-9 / X2CrNi19-11 |
| JIS | SUS 304L |
| BS | 304S11 |
| Form / Type | Size Range | Length / Dimensions | Condition / Standard |
|---|---|---|---|
| Cold Drawn Bright Bar | 3 mm to 65 mm Dia | 1000 mm to 6000 mm | Cold Drawn, h9/h11, Annealed |
| Peeled & Turned Bar | 20 mm to 160 mm Dia | Up to 6000 mm | Peeled & Polished, k12/h11 |
| Hot Rolled Black Bar | 20 mm to 200 mm Dia | Up to 6000 mm / Random | Hot Rolled, Annealed & Pickled |
| Forged Rough Turned Bar | 100 mm to 500 mm Dia | Up to 5000 mm | Forged, Solution Treated & Quenched |
| Precision Centerless Ground | 5 mm to 100 mm Dia | Up to 4000 mm | Ground Finish, h8/h9, Ra < 0.4 µm |
Custom dimensions, special cuts, and tailored surface conditions available on request.
Enter round bar diameter & length and click Calculate to get approximate weight.
Ganpat Metal manufactures and supplies certified SS 304L Round Bars for industrial buyers across India. All materials are sourced from premium quality mills, fully tested for chemistry, mechanical properties, and dimensional tolerances, and supplied with complete traceable Mill Test Certificates.
Whether you require standard stock dimensions or customized sizes, Ganpat Metal maintains deep inventories in Mumbai and provides rapid dispatch, custom cut-to-length services, and third-party inspection support.
India
UAE
Saudi Arabia
Oman
Australia
Malaysia
Singapore
Bangladesh
Egypt
Brazil
Russia
Kazakhstan
| Requirement | Details to Provide |
|---|---|
| Grade & Material | Stainless Steel 304L (UNS S30403 / W.Nr. 1.4306 / 1.4307) |
| Standard | ASTM A276 / ASME SA276, ASTM A479, ASTM A484 |
| Diameter (mm) | Required diameter in mm or inches with tolerance class |
| Length | Standard 3000 mm / 6000 mm or specific cut-to-length in mm |
| Delivery Condition | Cold Drawn / Peeled / Centerless Ground / Forged Rough Turned |
| Quantity | Required quantity in kg, meters, or number of bars |
| Testing Requirements | PMI, Ultrasonic Testing (UT), Hardness, Tensile, Third-Party Inspection |
| Documentation | EN 10204 3.1 / 3.2 MTC with full chemical and mechanical data |
